Keeping the Signal Strong: Broadcast Transmitter Maintenance – Cleanliness & Cooling
A clean, well-organized transmitter room is an efficient one.
Transmitters are the heart of any radio or television broadcast station. They take the programming and send it out to the audience. Reliable operation is critical – downtime means lost revenue, frustrated listeners/viewers, and potential damage to your reputation. While complex electronics demand skilled technicians, a surprising amount of reliability comes down to consistent, basic maintenance – specifically keeping the facility clean and cool. This post will dive into why these two factors are so vital and offer practical tips to keep your transmitter site running smoothly.
Why Cleanliness Matters: More Than Just Appearances
It’s easy to think of cleaning as a cosmetic issue, but in a transmitter facility, it’s a matter of preventing failures. Dust, dirt, and debris are the enemies of electronic components. Here’s how:
- Heat Trapping: Dust acts as an insulator, preventing heat from dissipating properly. This leads to component overheating and premature failure. (See the “Cooling is Key” section below for more on that.)
- Corrosion: Dust can absorb moisture, leading to corrosion of sensitive connections and components.
- Arcing & Short Circuits: Conductive dust (potentially containing metal particles) can create pathways for arcing and short circuits, potentially causing catastrophic damage.
- Reduced Efficiency: Dust buildup on cooling fins and heat sinks significantly reduces their ability to transfer heat, forcing components to work harder.
- Insect & Rodent Attraction: A dirty facility attracts pests. Rodents love to chew on cables, and insects can create nests in sensitive areas.
Simple Cleaning Tasks:
- Regular Vacuuming: Use a vacuum cleaner with a HEPA filter to remove dust from floors, equipment surfaces, and around ventilation intakes. Don’t use compressed air – it just redistributes the dust.
- Wipe Down Surfaces: Use antistatic wipes to gently clean equipment exteriors.
- Filter Changes: Regularly replace air filters in HVAC systems and any equipment with internal filters. (Follow manufacturer recommendations.)
- Cable Management: Keep cables neatly organized and secured. This minimizes dust accumulation and makes cleaning easier.
- Inspect for Pests: Regularly check for signs of rodent or insect activity and take appropriate measures.

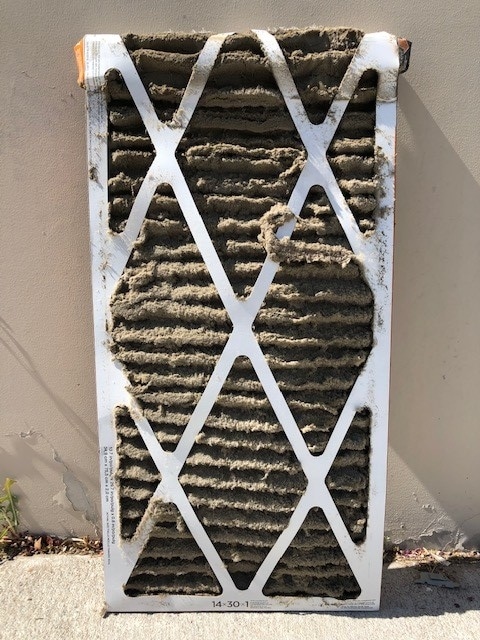

Do you think it was time to change this filter?
Cooling is Key: Preventing Overheating & Ensuring Reliability
Broadcast transmitters generate a significant amount of heat. Effective cooling is essential to maintain optimal performance and prevent component failure. Here’s what you need to know:
- Heat Dissipation: RF silicon power devices, tubes (Yes, they’re still used!), and power supplies all produce heat as a byproduct of operation. Heat sinks, fans, and ventilation systems are designed, of course, to remove this heat.
- Thermal Runaway: If heat isn’t removed efficiently, components can overheat, leading to a dangerous cycle called thermal runaway, which can destroy the device.
- Component Lifespan: Operating components at lower temperatures significantly extends their lifespan.
- Airflow is Critical: Ensure unobstructed airflow around all equipment. Don’t block ventilation intakes or outlets.
- Redundancy: Having backup cooling systems (fans, air conditioning units) is a smart investment to protect against failures.
Cooling Maintenance Tips:
- HVAC System Checks: Regularly inspect and maintain your HVAC system. This includes cleaning coils, checking refrigerant levels, and verifying proper operation. Obtain a reliable vendor for help.
- Fan Inspection: Check all fans to ensure they are spinning freely and not obstructed. Are the beraings noisy? Replace any failing fans immediately to help prevent 3AM off air calls.
- Heat Sink Cleaning: Gently remove dust from heat sinks using a soft brush or vacuum with a brush attachment. Avoid using liquids unless specifically designed for cleaning aluminium.
- Temperature Monitoring: Implement a temperature monitoring system to track temperatures in the transmitter room and alert you to potential problems.
- Consider Liquid Cooling: For high-power transmitters, liquid cooling systems can provide more efficient and reliable heat removal, but in smaller markets could be cost prohibitive.

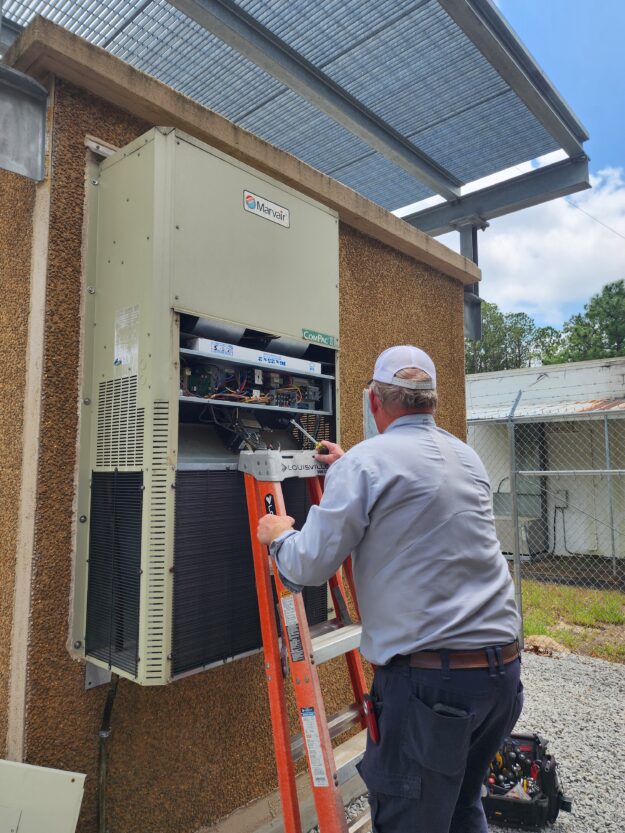

A technician inspecting the HVAC unit on a transmitter building.
Beyond Cleanliness & Cooling: A Holistic Approach
While cleanliness and cooling are foundational, remember that maintaining a broadcast transmitter facility requires a comprehensive approach:
- Regular Inspections: Schedule regular inspections of all equipment, including transmitters, power supplies, antennas, and transmission lines. Once a quarter is pushing it!
- Preventive Maintenance: Follow manufacturer recommendations for preventive maintenance tasks, such as replacing capacitors in power supplies, cleaning connectors, and lubricating moving parts.
- Documentation: Keep detailed records of all maintenance activities, repairs, and inspections. Think spreadsheets, or use a calendar.
- Training: Ensure that all relevant personnel have the necessary training to operate and maintain the equipment safely and effectively.
- Emergency Procedures: Have well-defined emergency procedures in place to address potential problems, such as power outages, equipment failures, or fires. How’s that backup generator doing? When was the last PM?

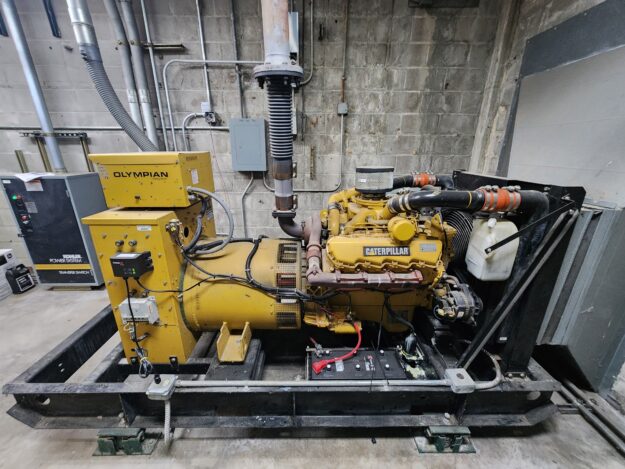

When was the last genset PM? Load bank test? Don’t wait until you’re off the air to find out!
Don’t Wait for a Failure – Proactive Maintenance Pays Off!
Investing in regular comprehensive maintenance program will significantly reduce the risk of costly downtime and extend the life of your broadcast transmitter equipment. CMP can help! We like to say “maintenance is an investment, not an expense!” Reach out today and see how we can create a plan for regular maintenance at your facility. A little proactive effort goes a long way in keeping your signal strong, as well as your GM and your audience happy.
